Important:
Use these instructions along with the tool, parts page or manual.
Notice: To avoid damage to the motor housing, use the Special Repair Tools designed for the disassembly and assembly of this motor. Disconnect the tool from the air supply. Use the appropriate wrenches to hold the work spindle stationary and remove the accessory.
Separate Non-Planetary
Geared Motor from
Right-Angle Head:
Step 1

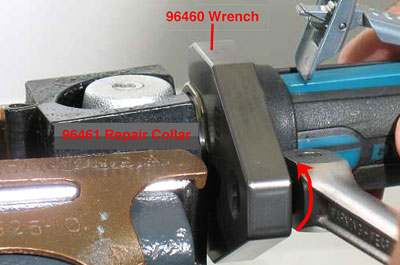

Use the 96461 Repair Collar to hold the 02031 or
02052 Housing in a vise, with the work spindle pointing down.
Step 2
Use the 96460 Wrench to loosen and separate the 45305 or 45307 Housing Core.
Important: Left hand thread - Turn clockwise.
Step 3

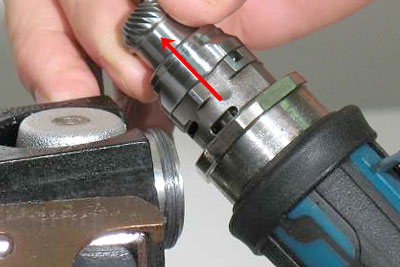

Remove the motor from the housing core.
