0.4 hp Motor - Right-Angle
Planetary Geared

Models: 49425 (Any 0.4 hp Right-Angle tools with Planetary Gears)
Revised: April 5th, 2013


Use these instructions along with the tool, parts page or manual.

Notice: To avoid damage to the motor housing, use the Special Repair Tools designed for the disassembly and assembly of this motor. Disconnect the tool from the air supply. Use the appropriate wrenches to hold the work spindle stationary and remove the accessory.

Connect Planetary Geared Motor
to Right-Angle Head:

Step 1

Fasten the 01578 or 94523 Inlet Adapter in the vise with aluminum or bronze jaws so that the motor pinion is pointing up.

▲ Top of Page

Step 2

Apply a small amount of Loctite #567 to the threads of the
45305 Housing Core

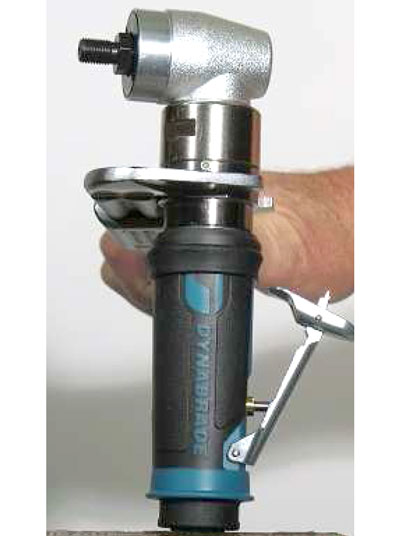

Step 3

Install the planetary gear assembly onto the housing core
(motor assembly). (T to 34 N•m/~300 in. Lbs.)
