0.4 hp Motor - Angle-Head

Models: 49135, 49400, 49410, 49420, 49430, 49440, 49455
Revised: April 5th, 2013

How To Disassemble
Angle-Head Sub-Assembly:


Step 1

Disconnect the tool from the air supply.
Use the 95987, 5/16" Wrench to hold the work spindle stationary, and remove the accessory.
Fasten the wrench flats of the 54547 Angle Housing in a vise with aluminum or bronze jaws.


Step 2

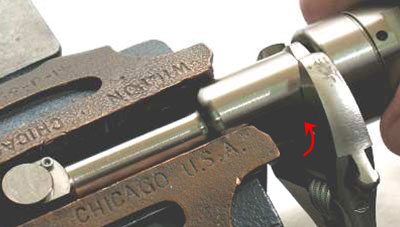

Use an adjustable wrench to loosen the 54527 Lock Ring.
Separate the 53451 or 53454 Adapter from the
54547 Angle Housing.



Important: Left Hand Thread,
Turn clockwise.

▲ Top of Page


Step 3

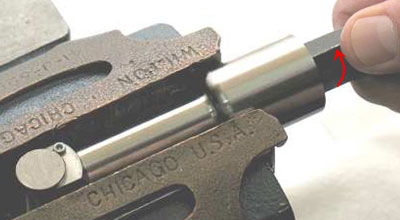

Use a 5/8" or 16 mm hex key to remove the 54540 Retaining Nut.



Important: Left Hand Thread,
Turn clockwise.

▲ Top of Page


Step 4

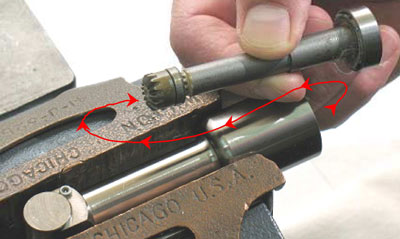

Remove the 54541 Spindle and connected parts,
from the 54547 Angle Housing.




▲ Top of Page


Step 5

Reposition the 54547 Angle Housing and fasten the flat sides of the housing in the vise with the 54550 Bearing Cap facing up.




▲ Top of Page


Step 6

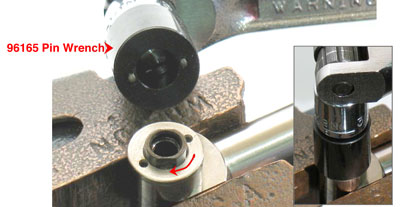

Use the 96165 Pin Wrench to remove the bearing cap.

Important: Left Hand Thread,
Turn clockwise.

▲ Top of Page


Step 7

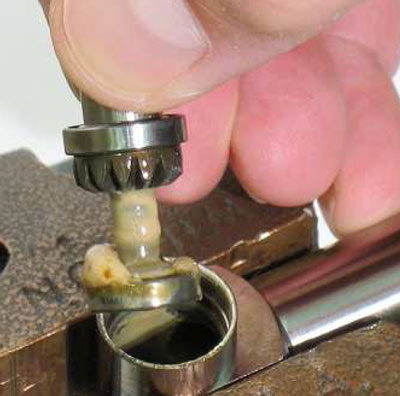

Remove the 54549 Work Spindle, bearings and shims.




▲ Top of Page


Step 8

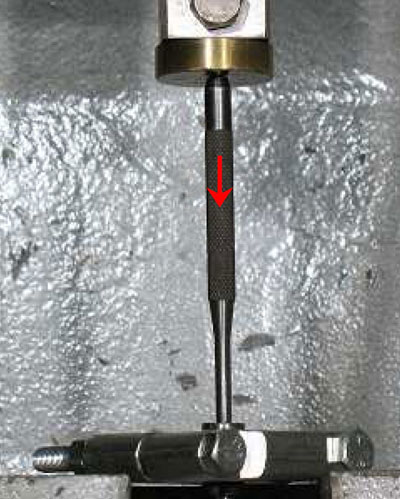

Use the 96345 Bearing Separator (15/16"), a 3/16" flat-end drive punch, and the 96232 Arbor Press (#2) to remove the bearings from the 54549 Work Spindle, and the 54541 Spindle.




▲ Top of Page


Angle-Head Disassembly Complete
