0.5 hp Motor - Dynafile® II

Models: 40320, 40321, 40324, 40326, 40330, 40335
Revised: April. 5th, 2013


Use these instructions along with the tool, parts page or manual.

Notice: Shut off the air supply and depress throttle lever to dissipate the remaining air. Carefully disconnect the tool from the air supply hose. Remove the abrasive belt and contact arm assembly. Use the Special Repair Tools designed for the disassembly and assembly of this motor.

Assemby of Dynafile® II

Step 1

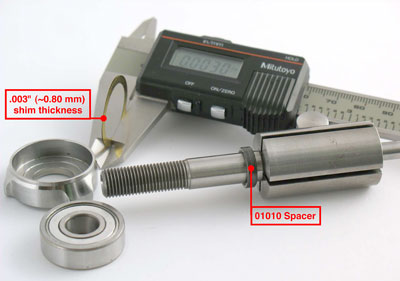

Install the 01010 Spacer onto the rotor. Install .003" (~0.80 mm) shim thickness into the 01008 Front Bearing Plate. Install the 01007 Bearing into the front bearing plate. Install the bearing and plate onto the rotor.

▲ Top of Page

Step 2

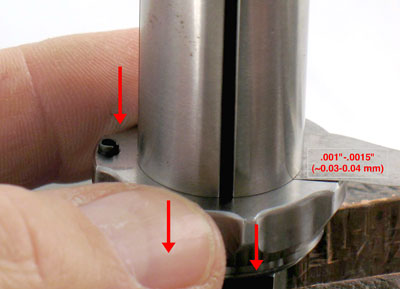

By hand, install the 04081 Rotor Nut. Pull the front bearing plate forward to take movement out of the bearing. Check the clearance between the rotor and plate. Use a .001" (~0.03 mm) thick
feeler gauge.

Notice: The clearance should be .001"-.0015"
(~0.03-0.04 mm). If the rotor/plate clearance needs adjustment, repeat steps 1 and 2. Remove or
add shims as required.

▲ Top of Page

Step 3

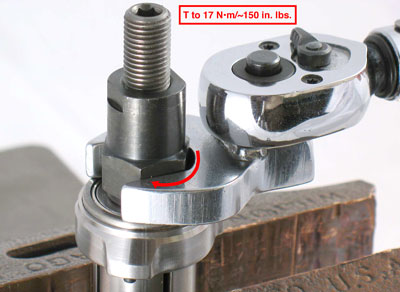

Use a 17 mm socket or crowfoot, and a torque wrench to tighten the 04081 Rotor Nut. (T to 17 N•m/~150 in. lbs.)

▲ Top of Page

Step 4

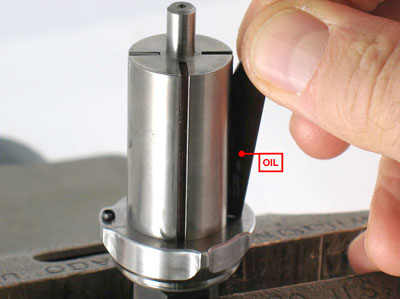

Apply the 95842 Dynabrade Air Lube, 10W/NR or equivalent to the 01011 Vanes and install them into the rotor.

▲ Top of Page

Step 5

Use the Raised Outside Diameter of the 96241 Bearing Press Tool and the arbor press to install the 01015 Bearing.

Notice: Press the bearing all the way into the plate.

▲ Top of Page

Step 6

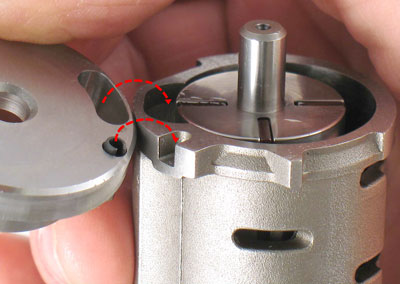

Install the cylinder and rear bearing plate so that the air inlet openings line-up with each other.

▲ Top of Page

Step 7

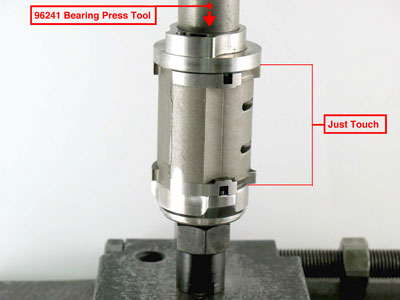

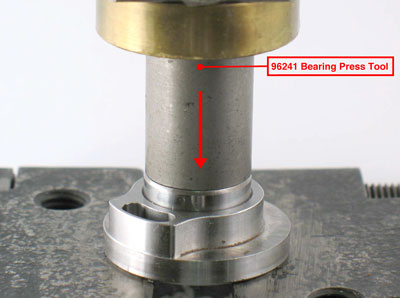

Use the Raised Inside Diameter of the 96241 Bearing Press Tool and the arbor press to install the bearing and plate.

Important: Press the bearing and plate down until the rear bearing plate just touches the 01013 Cylinder. This will produce a close fit between the bearing plates
and the cylinder.

▲ Top of Page

Step 8

Install the motor assembly.

▲ Top of Page

Step 9

Carefully fasten the 01447 Housing in a vise with aluminum or bronze jaws so that the rotor spindle is pointing up. As needed, install fabric silencer around the exhaust control spacer and o-rings around the lock ring. Apply Loctite #7649 Primer to the thread of the lock ring. Apply a small amount of Loctite #567 or equivalent to the lock ring. Use the 50971 Lock Ring Tool and a torque wrench to install the lock ring.
( T to 34 N·m/~300 in. lbs.)

Notice: Over tightening vise will damage housing.

▲ Top of Page

Step 10

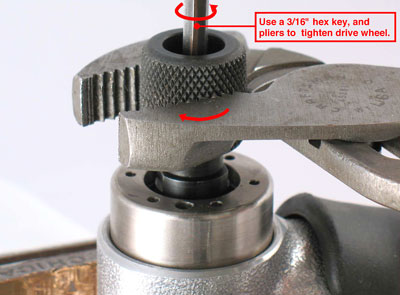

Insert a 3/16" hex key through the drive wheel and into the end of the 01120 Rotor to hold it stationary. Use groove pliers to tighten the drive wheel.

Important: Use a tachometer to check motor speed and
to verify proper operation.

▲ Top of Page

Step 11

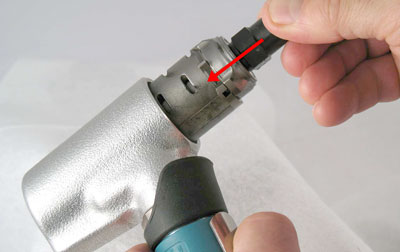

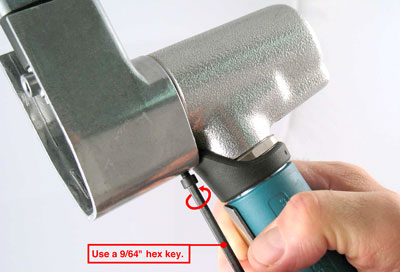

Install the air motor into the housing. Use a 9/64" hex key to fasten the motor with the 95311 Screw and 40029 Cam Lock.

Notice: For belt housing, contact arm and valve assemblies, refer to the exploded view and the additional instructions contained in the tool parts page or manual.
Click here
and enter your model number for the current parts page or manual.

▲ Top of Page

Assembly of Dynafile® II Complete
